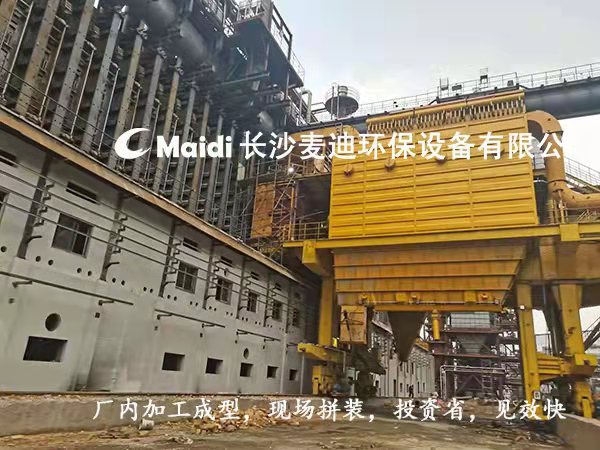

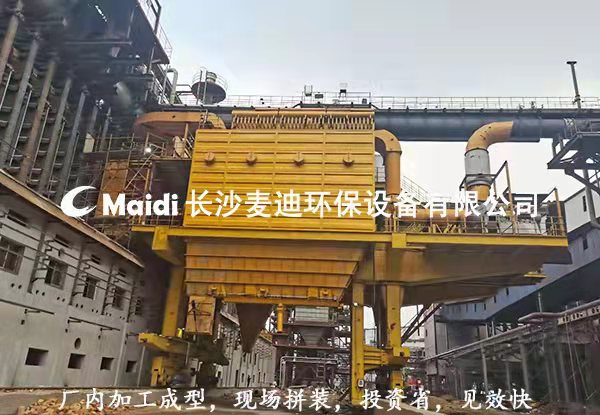

钢厂焦化厂大型脉冲布袋除尘器现场制作完毕投运

  • 发布时间:2021-10-03
  • 发布者: mr.li
  • 来源: 麦迪环保网
  • 阅读量:

钢厂焦化厂大型脉冲布袋除尘器现场制作完毕投运

LMCD(CDMC)系列长袋脉冲布袋式除尘器

LMCD (CDMC) Series Long-Bag Pulse Bag Pulse Filter

l   设计新颖,采用下进气结构,较粗的高温颗粒直接落入灰斗,有效的保护了滤袋

l   采用长滤袋,在同等处理能力时设备占地面积少,更便于老厂改造

l   采用分室离线清灰,效率高,粉尘的二次吸附少,同时有效的降低了设备能耗,滤袋与脉冲阀的疲劳程度也相应降低,成倍地提高了滤袋和阀片的寿命,大量减少了设备运行维护的费用

l   检修换袋可在不停系统风机、系统正常运行的条件下分室进行

l   滤袋袋口采用弹簧涨紧结构,拆装方便,具有良好的密封性

l   箱体经过气密性设计,并以煤油捡漏,最大程度减少漏风

l   整台设备由PLC机控制,实现自动清灰、卸灰、自动温度控制及超温报警

l   Hopper directly to effectively protect filter bags.

l   With long bags, equipment takes less area compared with others in the same capacity. It is especially favorable for upgrading of existing plants.

l   Off-line dust removal in separate chambers featured as follows: high efficiency: less secondary dust re-adhering: lower power consumption; extended service life of bags and valve plate due to less fatigue. in this way, expense for equipment maintenance could be greatly reduced.

l   Maintenance and replacement of bag can be separately conducted in each chamber without interrupting the whole operation system and fans.

l   Apply spring take-up at bag mouth for easy maintenance and replacement and favorable air tightness.

l   The design of shell takes air tightness into consideration and use kerosene for inspection, so as to reduce air leakage to the largest extent.

l   Equipment is controlled through PLC to realize automatic dust removal, dust discharge, temperature control and over-temperature alarming.





l   排放低于30mg/Nm³

l   滤袋平均寿命在18个月以上

l   运转率相对主机100%

l   Emission concentration is below 30 mg/Nm³.

l   The average life service is over 18 months.

l   The operation rate of dust collector to man equipment is 100%.
